Cantilever Arm

AUSTLIFT Cantilever Davit System

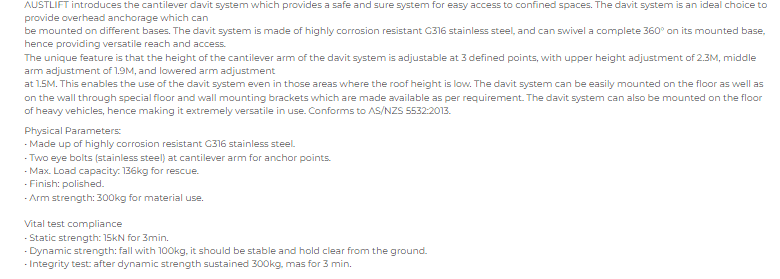

The AUSTLIFT Cantilever Davit System provides a safe and reliable solution for easy access to confined spaces. Designed for overhead anchorage, it can be mounted on various bases, making it an ideal choice for rescue and industrial applications.

Key Features:

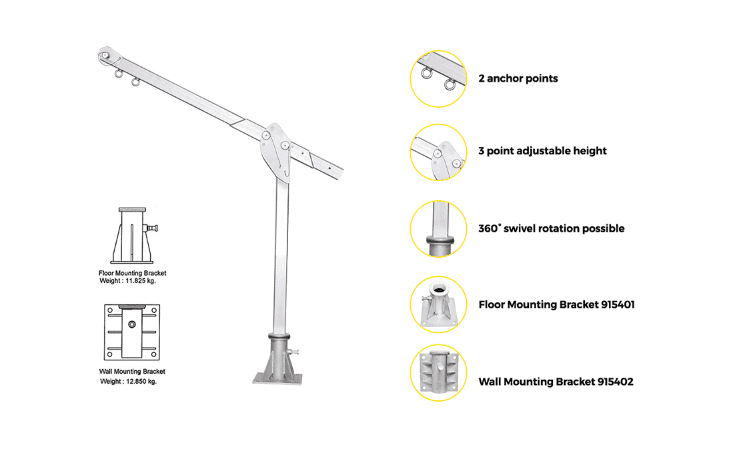

• 360° Rotation – Swivels freely on its mounted base for versatile reach and access.
• Adjustable Height – Three height settings for varied clearance needs:

Upper Position: 2.3m

Middle Position: 1.9m

Lower Position: 1.5m

• Corrosion-Resistant Build – Made from G316 stainless steel, ensuring durability and longevity.
• Multiple Mounting Options – Can be floor- or wall-mounted using specialized brackets.
• Heavy-Duty Performance – Can be mounted on heavy vehicles for added versatility.
• Certified Safety – Conforms to AS/NZS 5532:2013.

Technical Specifications:

Material: Highly corrosion-resistant G316 stainless steel

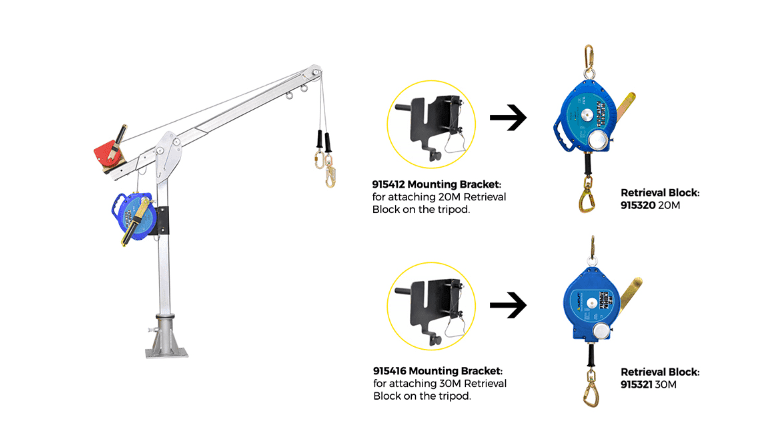

Anchor Points: Two stainless steel eye bolts on the cantilever arm

Maximum Load Capacity: 136kg (rescue use)

Arm Strength: 300kg (material use)

Finish: Polished stainless steel

Testing & Compliance:

• Static Strength: Withstands 15kN for 3 minutes
• Dynamic Strength: Holds 100kg during a fall test while staying clear of the ground
• Integrity Test: Sustains 300kg for 3 minutes after dynamic strength testing

Perfect for industrial, construction, and rescue applications, the AUSTLIFT Cantilever Davit System is engineered for safety, reliability, and durability.
