Lifting Point Key with Long Thread Yoke
Price range: $87.80 through $423.80
*Items usually shipped within 24-48 hours from our Supplier Warehouses in Sydney, Brisbane, Melbourne and Perth.
- 360° Rotating Design – Fully adjustable in the direction of the load for optimal lifting efficiency.
- High-Strength Alloy Steel – Manufactured from quenched and tempered alloy steel for durability and reliability.
- Certified & Tested – Complies with EN1677-1 and is certified by DGUV GS-OA 15-04.
- Rigorous Quality Control – Load-rated parts undergo 100% Magnaflux crack detection.
- Traceable Components – Individual forged parts and cap screws are fully traceable to test certification.
- Metric Thread Bolts – Designed for use with metric-threaded bolts.
- Proof Load Tested – Verified to 2.5 times the Working Load Limit (WLL) for enhanced safety.
- Fatigue Rated for Longevity – Tested to 20,000 cycles at 1.5 times the WLL.
- Industry-Compliant – Meets or exceeds all ASME B30.26 requirements.
- Easy Installation – Quick and simple assembly; only a tapped hole is required.
| Weight | N/A |
|---|---|

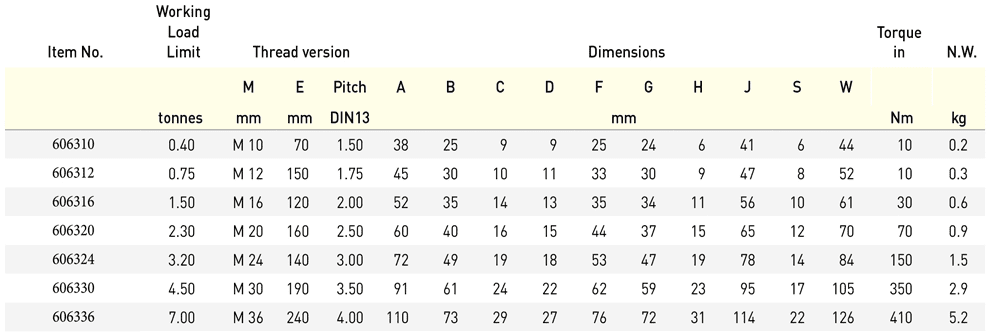

| Size | 10mm WLL 0.4T, 12mm WLL0.75T, 16mm WLL1.5T, 20mm WLL2.3T, 24mm WLL 3.2T, 30mm WLL4.5T, 36mm WLL7T |
