Shackle Grade M Dee Black
Price range: $2.30 through $252.30
*Items usually shipped within 24-48 hours from our Supplier Warehouses in Sydney, Brisbane, Melbourne and Perth.
Austlift grade M dee shackles are used where larger dimensional shackles are required for specific applications. Also ideal for the marine, agricultural & general industrial uses.
- Grade M shackles is manufactured to comply in accordance with AS2741.
- Made from Grade 40 alloy steel, larger dee shape with screw pin, available in black or hot dipped galvanised finish.
- Suitable for lifting applications.
Please note:
With shackles in high temperature, both grade S and grade M need the following derating if used in applications higher than 200 degrees Celsius.
If used between 200 to 300 degrees then a 10% derate is needed
If used between 300 to 400 degrees then a 25% derate is needed
Above 400 degrees neither shackle can be used.
| Weight | N/A |
|---|---|

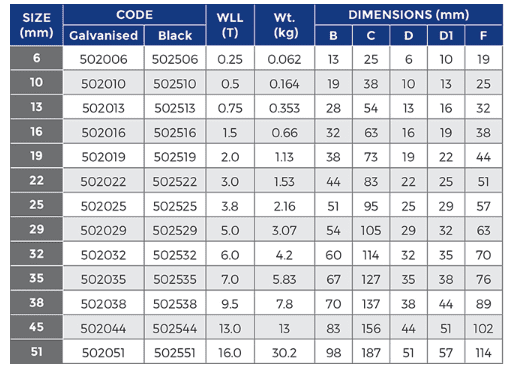

| Size | 10mmx0.5T, 13mmx75T, 16mmx1.5T, 19mmx2.0T, 22mmx3.0T, 25mmx3.8T, 29mmx5.0T, 32mmx6.0T, 35mmx7.0T, 38mmx9.5T, 45mmx13T, 51mmx16T, 6mmx0.25T |
