Shackle Grade S Bow Safety Galvanised
Price range: $4.80 through $2,028.36
*Items usually shipped within 24-48 hours from our Supplier Warehouses in Sydney, Brisbane, Melbourne and Perth.

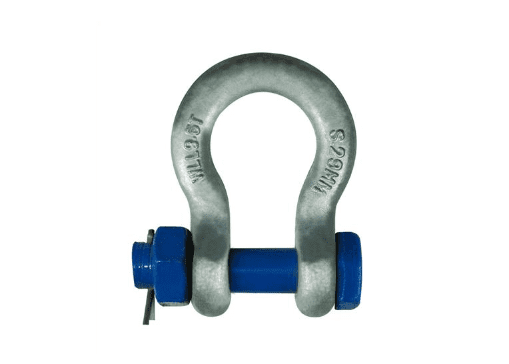

Austlift Blue Safety Pin Bow Shackles
Austlift blue safety pin bow shackles are designed for lifting applications, offering secure and reliable connections to chain, wire rope, and other rated fittings across marine, agricultural, mining, and engineering industries. Ideal for use in environments where equipment may experience vibration, ensuring the pin remains securely in place. The safety pin is designed to rotate under load conditions for added safety.
- Complies with AS2741 standards and manufactured from Grade S material in a bow configuration with a hot-dipped galvanized safety pin.
- Clearly marked with Working Load Limit (WLL) in tonnes, grade, batch number, nominal size in millimetres, and supplier identification.
- Proof tested to 2x the working load limit with a minimum breaking force of 6x the WLL.
- Test certificates available upon request.
- Black finish available in all sizes upon request.
- Suitable for lifting and rigging applications.
| Weight | N/A |
|---|---|

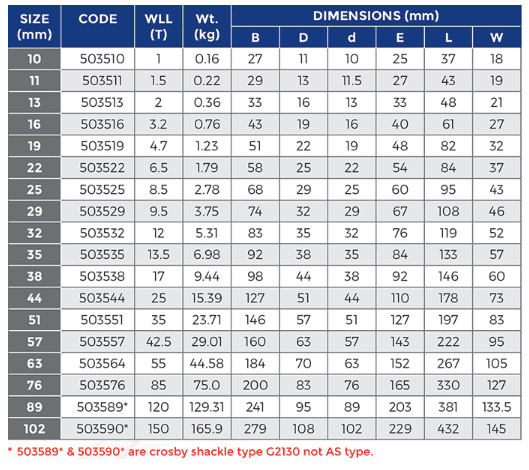

| Size | 102mmx150T, 10mmx1T, 11mmx1.5T, 13mmx2T, 16mmx3.2T, 19mmx4.7T, 22mmx6.5T, 25mmx8.5T, 29mmx9.5T, 32mmx12T, 35mmx13.5T, 38mmx17T, 44mmx25T, 51mmx35T, 57mmx42.5T, 63mmx55T, 76mmx85T, 89mmx120T |
