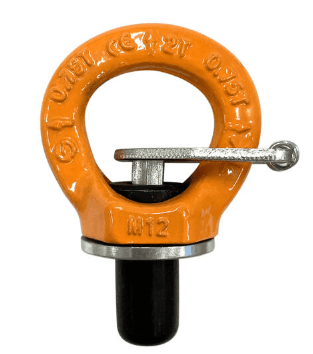

Stubby Eye Bolt
Price range: $21.95 through $70.95
*Items usually shipped within 24-48 hours from our Supplier Warehouses in Sydney, Brisbane, Melbourne and Perth.
- Swivel Eye Bolt Points – Designed in accordance with AS2317 for the swivel component, providing 360° rotation and 90° pivoting for versatile lifting applications.
- High-Strength G100 Alloy Steel – Manufactured from forged, quenched, and tempered Grade 100 alloy steel, with a high-visibility orange painted finish for durability and corrosion resistance.

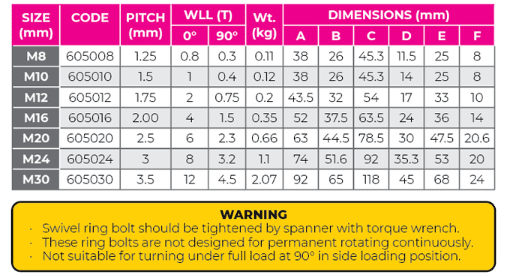

- Versatile Sizing – Features an elongated ring and is available in metric thread sizes from 8mm to 20mm.
- Clear Markings for Safety – Stamped with Working Load Limit (WLL) in tonnes, nominal size in millimeters, quality grade, and supplier identification.

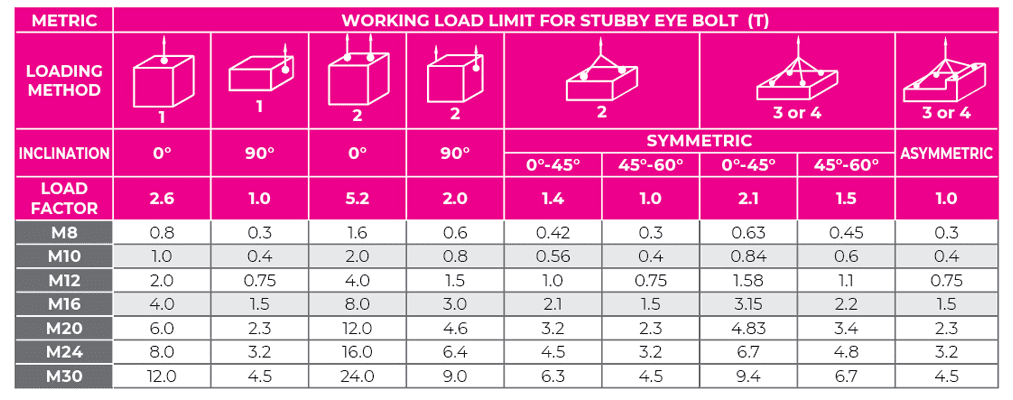

- Optimized Load Rating – Rated at 100% WLL at a 90° angle for enhanced performance.
- Strict Quality Control –
- 100% Magnaflux crack detection ensures defect-free components.
- Proof tested in two stages:
- 1.25x WLL with the ball bearing included.
- Ball bearing is removed (if damaged), then tested at 2x WLL.
- Certified for Assurance – Test certificates are available upon request.
| Weight | N/A |
|---|---|
| Size | M10/1T, M12/2T, M16/4T, M20/6T, M8/0.8T |
