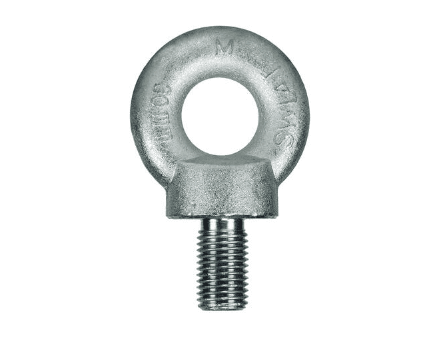

Eye Bolt BS4278 Zinc (Metric Thread)
Eye Bolt BS4278 Zinc (Metric Thread) - Image 2
Eye Bolt BS4278 Zinc (Metric Thread) - Image 3
Eye Bolt BS4278 Zinc (Metric Thread) - Image 4

Eye Bolt BS4278 Zinc (Metric Thread)

Price range: $4.60 through $35.20 inc. GST

Product codes: 603008, 603010, 603012, 603016, 603020, 603024, 603030



*Most items are dispatched within 24–48 hours from our supplier warehouses in Sydney, Brisbane, Melbourne and Perth. We will confirm availability and dispatch time when you order.

  • Versatile Lifting Solution – BS4278 eye bolts are designed as removable lifting points where a rated female thread or nut can be used. They are also suitable as terminations for chains, wire ropes, and other assemblies.
  • High-Quality Carbon Steel – Manufactured from carbon steel following BS970 steel specifications, with a zinc-plated finish for corrosion resistance. Features a smaller eye compared to DIN-type bolts.
  • Standards-Compliant – Conforms to AS2317 and is clearly marked with the Working Load Limit (WLL) in tonnes, nominal size, quality grade, batch number, and supplier identification.
  • Rigorous Strength Testing – Proof tested to 2 times the WLL with a minimum breaking force of 6 times the WLL for enhanced safety and reliability.
  • Certified for Assurance – Test certificates are available upon request.
  • Color Options – Also available in black.
Size

10mm/0.25T, 12mm/0.4T, 16mm/0.8T, 20mm/1.6T, 24mm/2.5T, 30mm/4T, 8mm/0.15T

Capacity

150kg
