Eye Bolt BS529 Zinc (BSW Thread)
Eye Bolt BS529 Zinc (BSW Thread) - Image 2
Eye Bolt BS529 Zinc (BSW Thread) - Image 3
Eye Bolt BS529 Zinc (BSW Thread) - Image 4

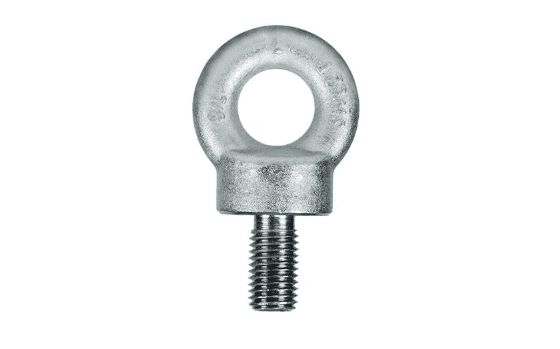

Eye Bolt BS529 Zinc (BSW Thread)

Price range: $5.01 through $46.00 inc. GST

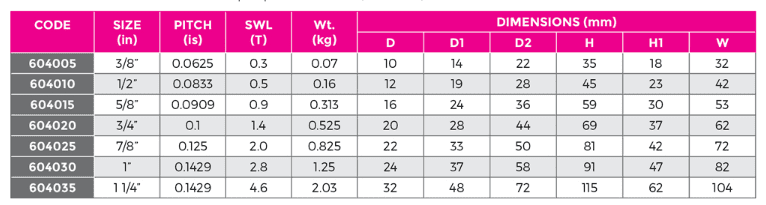

Product codes: 604005, 604010, 604015, 604020, 604025, 604030, 604035



*Most items are dispatched within 24–48 hours from our supplier warehouses in Sydney, Brisbane, Melbourne and Perth. We will confirm availability and dispatch time when you order.

  • Versatile Lifting Point – BS529 eye bolts are designed as removable lifting points where a rated female thread or nut can be used. They are also suitable as terminations for chains, wire ropes, and other assemblies.
  • Durable Carbon Steel Construction – Manufactured from carbon steel in accordance with BS970 specifications, featuring a zinc-plated finish for corrosion resistance. Designed with a smaller eye compared to DIN-type eye bolts.

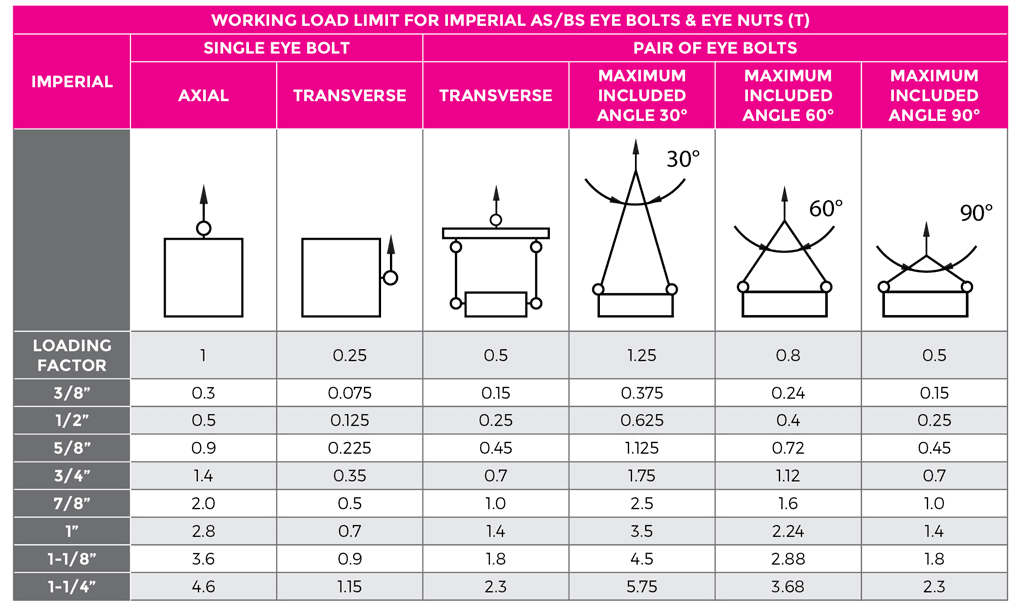

  • Standards-Compliant – Conforms to AS2317, ensuring safety and reliability. Each unit is marked with the Working Load Limit (WLL) in tonnes, nominal size, quality grade, batch number, and supplier identification.
  • Rigorous Strength Testing – Proof tested to 2 times the WLL with a minimum breaking force of 6 times the WLL for enhanced safety.
  • Certified for Assurance – Test certificates are available upon request.
Size

1"-2.8T, 1/2"-0.5T, 11/4"-4.6T, 3/4"-1.4T, 3/8-0.3T, 5/8"-0.9T, 7/8"-2T

Capacity

300kg
