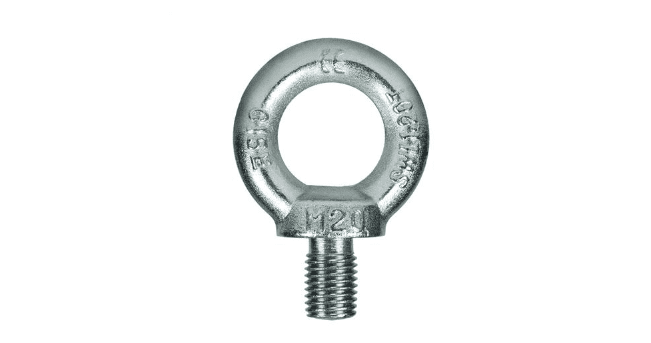

Eye Bolt DIN580 Zinc
Price range: $1.98 through $166.10
*Items usually shipped within 24-48 hours from our Supplier Warehouses in Sydney, Brisbane, Melbourne and Perth.
- Versatile Lifting Solution – DIN580 eye bolts serve as removable lifting points where a rated female thread or nut can be used. They are also ideal as terminations for chains, wire ropes, and other assemblies.
- Durable Carbon Steel Construction – Made from C15 carbon steel with a zinc-plated finish for corrosion resistance. Designed with a standard larger eye and available only in metric thread sizes.

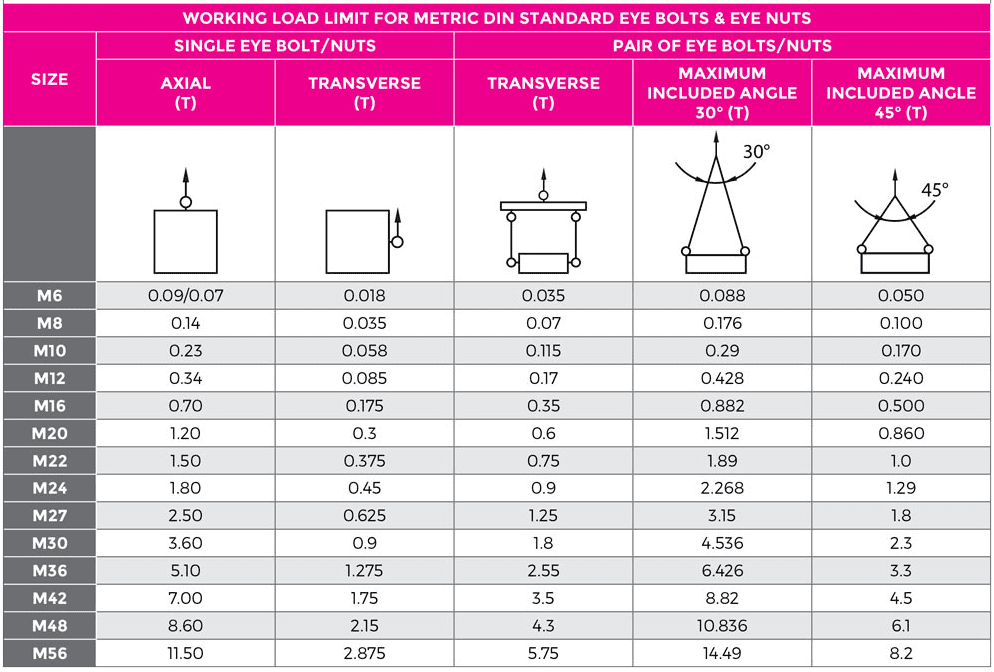

- Standards-Compliant – Conforms to DIN580 and DIN582, ensuring reliability and safety. Each unit is marked with the Working Load Limit (WLL) in tonnes, nominal size in millimeters, quality grade, batch number, and supplier identification.
- Rigorous Strength Testing – Proof tested to 2 times the WLL with a minimum breaking force of 6 times the WLL for enhanced safety.
- Certified for Assurance – Test certificates are available upon request.
| Weight | N/A |
|---|---|

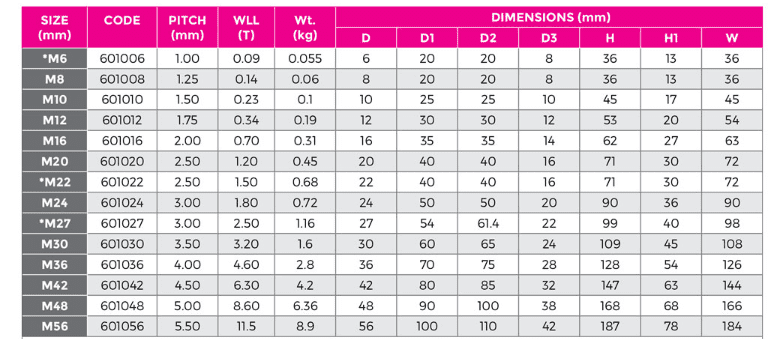

| Size | 10mm/0.23T, 12mm/0.34T, 16mm/0.70T, 20mm/1.2T, 22mm/1.5T, 24mm/1.8T, 27mm/2.5T, 30mm/3.6T, 36mm/5.1T, 42mm/7T, 48mm/8.6T, 56mm/11.5T, 6mm/0.9T, 8mm/0.14T |
